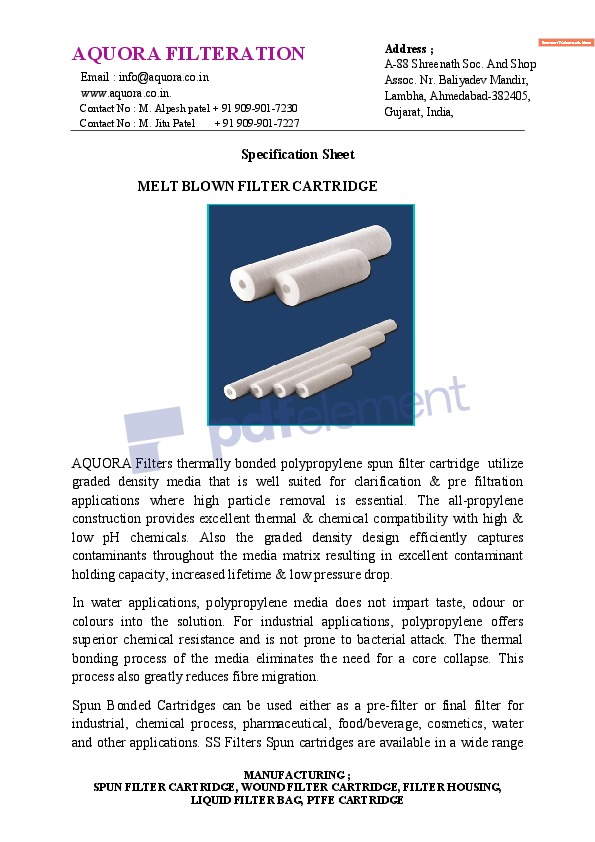

SEDIMENT FILTER CARTRIDGE
Published on by AQUORA FILTERATION, WE ARE LEADING MANUFACTURER OF PP SPUN FILTER, WOUND FILTER, LIQUID BAG FILTER, IN AHMEDABAD for AQUORA FILTER
AQUORA Filters thermally bonded polypropylene spun filter cartridge utilize graded density media that is well suited for clarification & pre filtration applications where high particle removal is essential. The all-propylene construction provides excellent thermal & chemical compatibility with high & low pH chemicals. Also the graded density design efficiently captures contaminants throughout the media matrix resulting in excellent contaminant holding capacity, increased lifetime & low pressure drop.
In water applications, polypropylene media does not impart taste, odour or colours into the solution. For industrial applications, polypropylene offers superior chemical resistance and is not prone to bacterial attack. The thermal bonding process of the media eliminates the need for a core collapse. This process also greatly reduces fibre migration.
Spun Bonded Cartridges can be used either as a pre-filter or final filter for industrial, chemical process, pharmaceutical, food/beverage, cosmetics, water and other applications. SS Filters Spun cartridges are available in a wide range of lengths and micron sizes. Two sizes are available- standard and jumbo as per your flow rate and volume requirements.
FEATURES & BENEFITS:
High flow rates and low pressure drops
Wide chemical compatibility
Particles removed through the entire depth of filter cartridge
Graded density structure for maximum dirt holding capacity
Supported core for overall strength
Thermal bonding process stops media migration
Contains no resin binders, solvent ,wetting or antistatic agents
PRODUCT SPECIFICATIONS
Micron Rating : 1, 5, 10, 20 µ
Length : 10" / 20" / 30" / 40”
Inner Dia for standard size : 28 mm
Inner Dia for jumbo size : 28 mm
Outer Dia Outer : 60-64 mm (2”/ 2.5”)
Dia for jumbo size : 102-112 mm (4”/4.5”)
Max operating temperature : 80˚ C
Max Differential Pressure : 3-4 bar (50 psi) @ 21˚C
CONSTRUCTION:
Filter media: 100% Polypropylene fibre
Support media: Polypropylene fibre
Inner core: Polypropylene cage·
CONFIGURATION:
Double open end type (DOE Type)
Code 7S (226 ‘O’ Ring design/ Bayonet or fin)
APPLICATIONS:
Pharmaceutical Industry
RO treatment of water
Colour & Dyes Industry Chemical Industry
Water Treatment Industry
Textile industry
Edible oils
Electronics
Cosmetics
